1. German precision, extremely stable
- Adopting an integral casting machine base with a multi-axis synchronous hydraulic system
- All core components are imported from Germany
- Patented vibration platform technology ensures that the product density uniformity reaches 98.5%
2. Intelligent production, efficiency leader
- Equipped with Industry 4.0 intelligent control system
- Equipped with a quick mold change system (QMS)
- The output of a single shift (8 hours) under standard working conditions reaches 12,000-15,000 pieces
3. Energy saving and environmental protection, green benchmark
- Инновационная система рекуперации энергии
- The whole Concrete Brick Making Machine noise is ≤72dB
- Meets the German Blue Angel environmental certification standards
4. Flexible production, one machine for multiple uses
- Compatible with 25 standard mold configurations
- Поддержка индивидуального ввода формул
- Digital production management system
1. Large-scale building materials production base
- Meet the needs of large-scale building materials companies with an annual production capacity of more than 80 million
pieces
- The degree of automation can reduce 80% of manual intervention
- Particularly suitable for commercial concrete enterprises to extend the industrial chain
2. Муниципальное инженерное строительство
- Specialized in the production of high-strength curbstones for municipal use
- Цельные изделия для дренажных канав
- Has been successfully used in many European urban renovation projects
3. Сборные строительные элементы.
- Can produce various types of lightweight thermal insulation composite bricks
- Product size accuracy reaches ±0.5mm
- Becomes the designated equipment of many internationally renowned construction companies
4. One Belt One Road infrastructure projects
- Modular design adapts to various climatic conditions
- Localized service network covers countries along the route
- Set excellent production records in many overseas projects
• The world's first "hydraulic + servo" dual power system
• Intelligent lubrication system achieves 1,800 hours of maintenance-free
• Optional 3D visual quality inspection system
• Cloud remote operation and maintenance platform

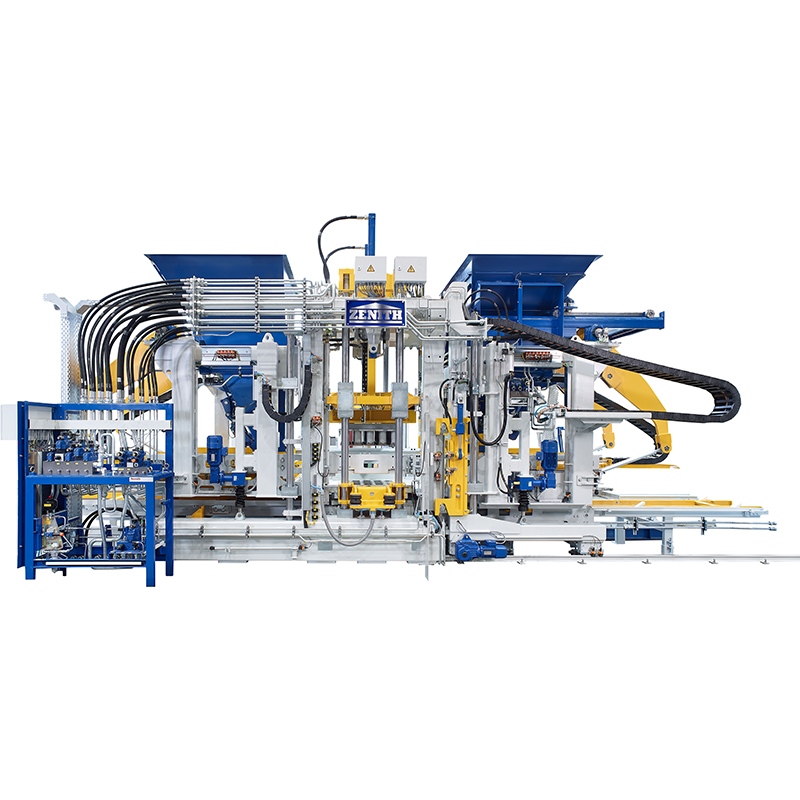

Five major values of choosing Zenith1500C
Scale benefits: 45% increase in conversion value per ton of raw materials
Intelligent control: full traceability of production data
Quality assurance: every brick meets international standards
Return on investment: payback period for large projects < 15 months
Continuous upgrade: enjoy Zenith's lifetime technical services.
Технические параметры
| Спецификация | ЗН1500С | ЗН1800С |
| Максимальная площадь формовки | 1300×1050 мм | 1300×1300 мм |
| Высота блока | 50-500мм | 50-500мм |
| Время цикла | 20~25s (Depending on block type) | 20~25s (Depending on block type) |
| Сила вибрации | 160кН | 200кН |
| Размер поддона | 1350×1100\1200×(14-50) мм | 1400×1400 мм |
| Производство на пресс-форму | 390×190×190 мм (15 шт./форма) | 390×190×190 мм (18 шт./форма) |
| Нижняя вибрация | 4×7,5 кВт (СИМЕНС) | 4×7,5 кВт (СИМЕНС) |
| Вибрация тамперной головки | 2×1,1 кВт | 2×1,1 кВт |
| Система управления | СИМЕНС | СИМЕНС |
| Общая мощность | 111,3кВт | Около 120 кВт |
| Общий вес | 18.3T(without facemix device) | 19.5T(without facemix device) |
| 25,2 Т (с устройством Facemix) | 27,5T (с устройством Facemix) | |
| Размер машины | 10920×3250×4485 мм | 11600×3250×4500 мм |
Технологическое преимущество

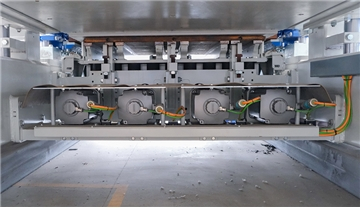

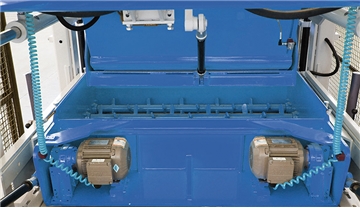

The Machine Is Equipped With The Newly Developed Servo Vibration System, Which Has A Dense And High-Excited Vibration Force, Thus Ensuring Production In An Efficient Way, Especially For Large Products And High-Quality Products, Which Need To Be Produced By Pre-Vibration And Transitional Vibration, Can Achieve A Really Nice Effect.
The Feeding System Is Applied With The Germany Patented Design, Which Is Suitable For The Use Of Construction Waste And Other Special Aggregates. What’s More, The Discharging Gate Is Controlled By SEW Motor. The Feeding Frame, Bottom Plate & Mixing Blades Are Made Of High-Duty Sweden HARDOX Steel, Which Strengthen The Sealing Performance And Prevent The Material Leakage To Guarantee The Long Service Life, Feeding Uniform For The Improved Product Quality.

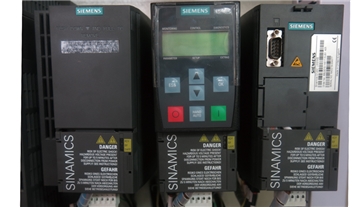

SIEMENS Frequency Conversional Technology Was Re-Innovated And Improved By Germany R&D Center. The Main Machine Vibration Adopts Low Frequency Standby, High Frequency Operation, Which Improve The Running Speed And Product Quality. At The Same Time, It Reduces The Impact On The Mechanical Parts And The Motor, Prolongs The Life Of The Machine And The Motor, And Saves About 20%-30% Of Electricity Compared With The Traditional Motor Operation Control.

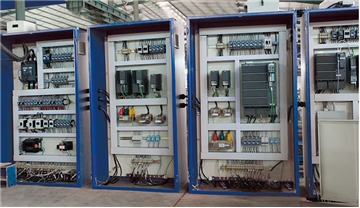

Perfectly Combine The Automation Technology And System From Germany. The Automatic Control Is Of Easy Operation, Low Failure Ratio And High Reliability. At The Same Time, It Has The Functions Of Product Formula Management And Operation Data Collection.
The Hydraulic Pump & Valve Are From International Brand, Which Adopt High Dynamic Proportional Valve And Constant Output Pump To Adjust The Speed & Pressure, With The Features Of High-Stability, High Efficiency And Energy-Saving.
QGM Intelligent Equipment Cloud System Realizes Online Monitoring, Remote Upgrade, Remote Fault Prediction And Fault Self-Diagnosis, Equipment Health Status Evaluation; Generates Equipment Operation And Application Status Reports And Other Functions; With The Advantages Of Remote Control & Operation, Quick Troubleshooting & Maintenance For The Clients. Everything Is Interconnected, And The Production And Operation Of Equipment Can Be Seen Through The Network In Every Corner Of The World.

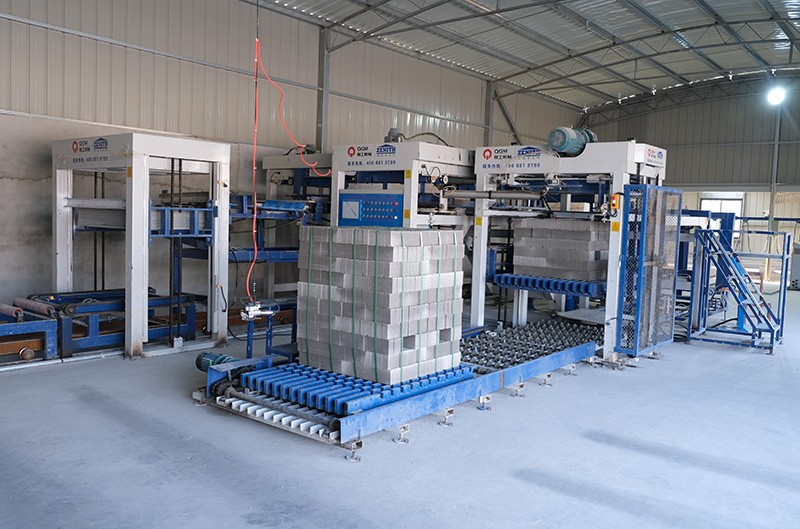

Следственное оборудование

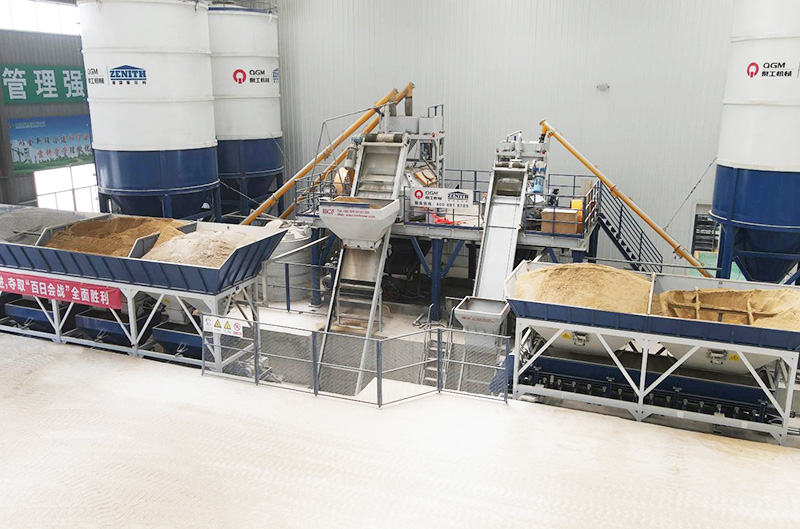

Дозатор
Автоматический питатель поддонов

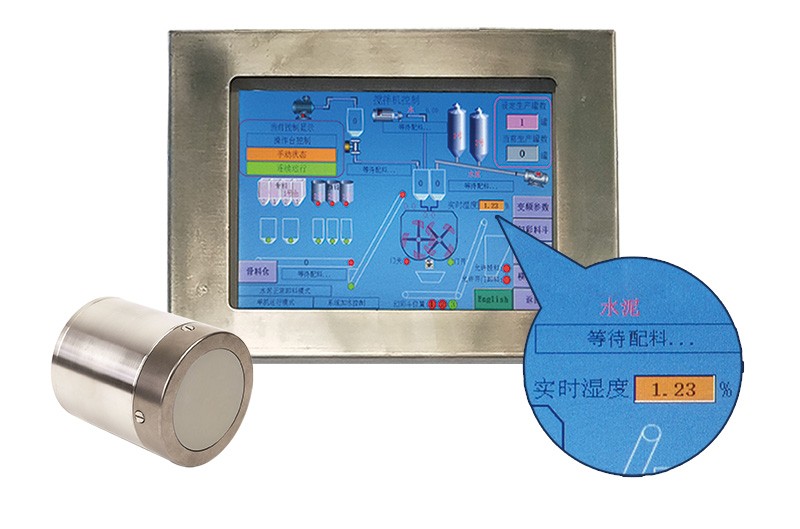

Датчик влажности

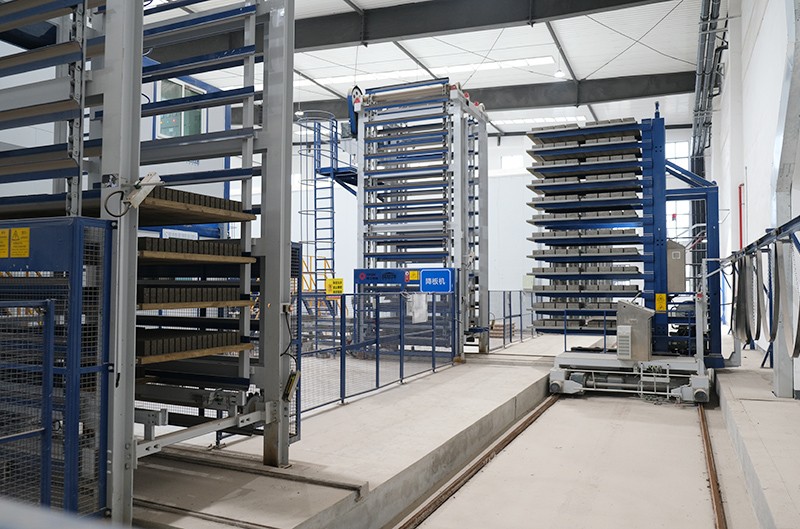

Палец Автомобиль

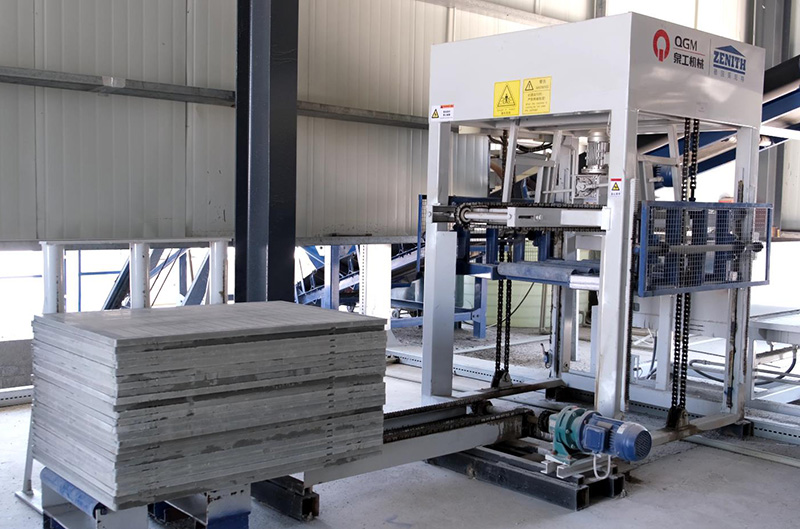

Сепаратор блоков и поддонов

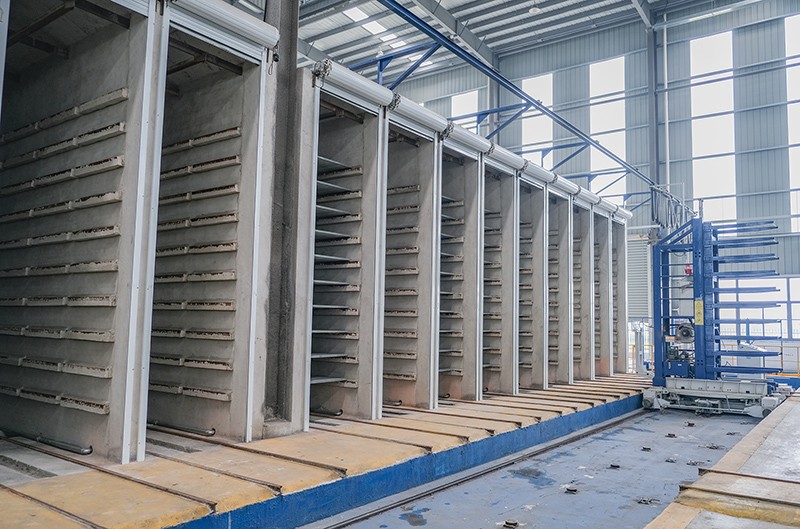

Камера отверждения
Блок-толкатель кубера
